post #16 of 20 Old 08-25-2008, 06:10 AM
Senior Member

zx12streetryder's Avatar

Join Date: Jun 2006
Location: Western, PA
Posts: 225
Send a message via Yahoo to zx12streetryder
any of you other nitrous guys got any photos of your setup?
zx12streetryder is offline
Sponsored Links
Advertisement

post #17 of 20 Old 08-25-2008, 04:20 PM
Senior Member

KZScott's Avatar

Join Date: Jan 2007
Location: Ontario, Canada
Posts: 6,245
Send a message via MSN to KZScott

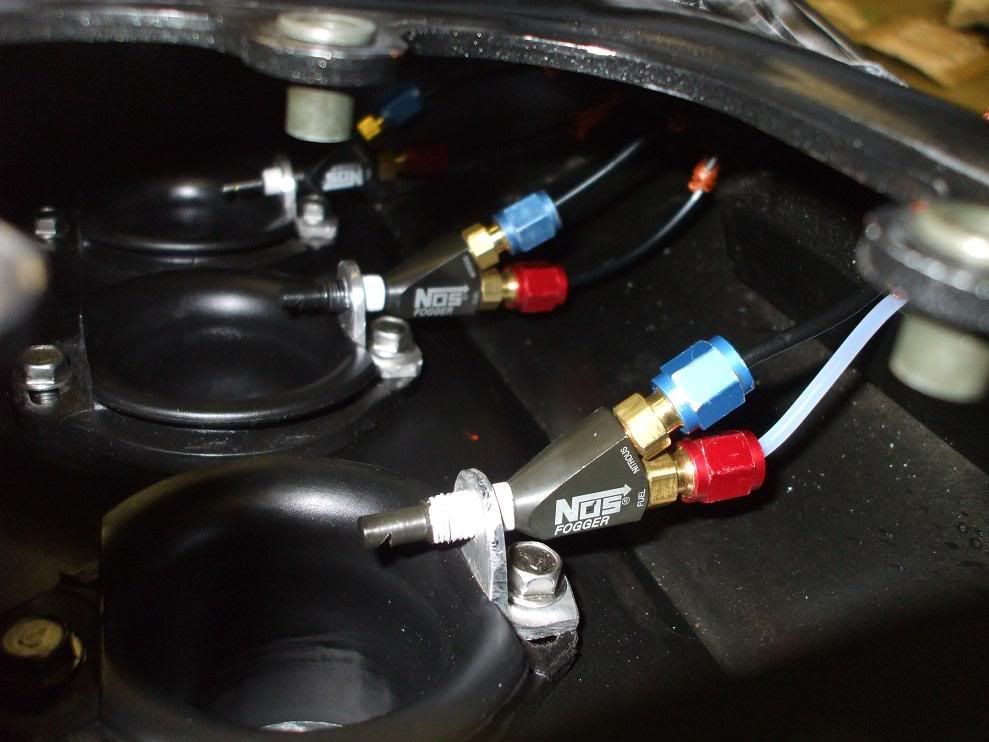

this is what i have done on my wet kit so far in the air box. the majority of the lines, the solenoids, distribution blocks are outside the air box/frame. just the foggers and brackets and a small length of line are actually in the airbox. the lines run pretty much straight back to 8 seperately drilled holes(sealed with silicone) in the back of the airbox. the lines will be replaced by stainless hard lines as soon as i recieve them from Gixx1300R(the guy selling the spraybars). you could do a dry kit this way too, just run the proper dry nozzels. just be sure to have a nitrous map in your PC. in my opinion it would distribute nitrous as evenly as a spraybar IF done properly. if you dont know what you are doing, the spraybar is a proven and tested option


01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
post #18 of 20 Old 08-25-2008, 04:34 PM
Senior Member

KZScott's Avatar

Join Date: Jan 2007
Location: Ontario, Canada
Posts: 6,245
Send a message via MSN to KZScott
this is the Nozzle you would want to do a dry kit that is set up similar to my wet kit
[img] http://www.jegs.com/images/photos/700/741/741-13500.jpg [/img]
the custom nozzles at the first of the thread that slykitty has would not distribute nitrous evenly. it may be ok for a small shot(25hp), but dont risk it guys. if you use a nozzle like that, have it way up in the ram air tubes so its evenly mixed before it even gets to the air filters

01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
Sponsored Links
Advertisement

post #19 of 20 Old 09-13-2008, 07:25 PM
Senior Member

KZScott's Avatar

Join Date: Jan 2007
Location: Ontario, Canada
Posts: 6,245
Send a message via MSN to KZScott
Talking

well, my setup works. proven today at the track. prev best was a [email protected] on motor. today i ran a 9.02 @ 157. should run 8.90s with better tuning, it was super rich.

01 ZX-12R 8.84 @ 156.3 on dot tires, NA.... turbo 8.47 @ 164
00 ZX-12R 8.62 @ 165.2 no bars, slicks, 55 shot... turbo 8.32 @ 173
00 ZX-12R 1: 222.046 1.5: 226.390 Worlds Fastest NA Kawasaki
00 ZX-12R street turbo 1: 227.9 1.5: 234.1
00 ZX-12R LSR turbo 1: 263.1 1.5: 266.5 Worlds fastest ZX-12R CMG Racing RCC Turbos
KZScott is offline
post #20 of 20 Old 04-15-2009, 04:36 PM

Join Date: Mar 2009
Posts: 21
diggin the system sly!! i got to many toys, now your making me want to thow a shot on my bike, have had alot of timed when i wish i had it! haha
BigMike is offline
